Three Five Layers Plastic PVC Garden Snake Skin Soft Pipe Hose Extruder Making Machine

PRODUCTS > Plastic pipe production line > Three Five Layers Plastic PVC Garden Snake Skin Soft Pipe Hose Extruder Making Machine

Three Five Layers Plastic PVC Garden Snake Skin Soft Pipe Hose Extruder Making Machine

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
Product Description

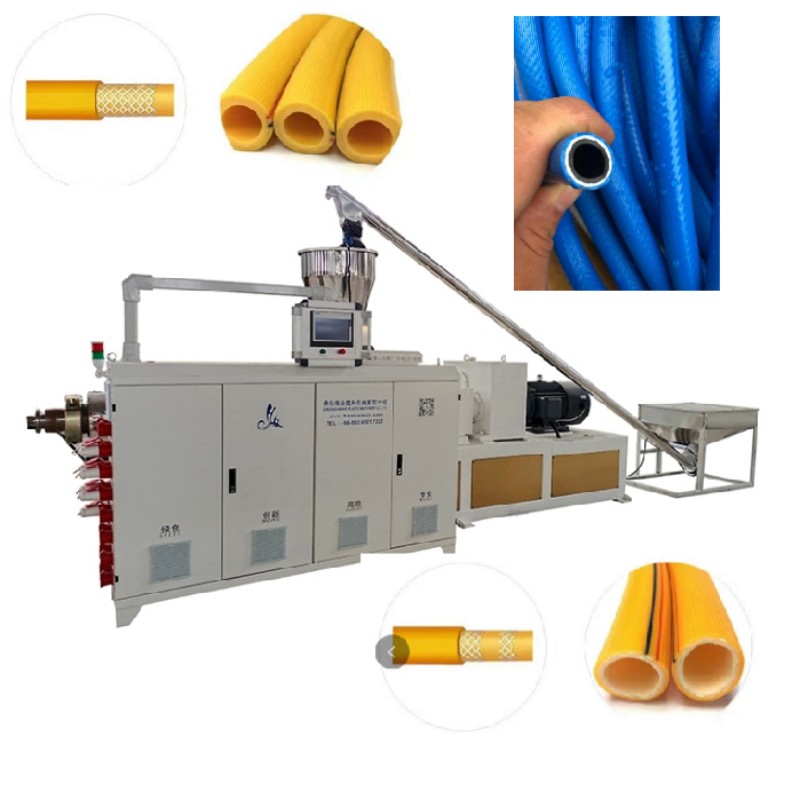

Garden Water Hose Fiber Reinforced Hose Snake Skin Hose PVC Soft Pipe Making Machine
We are very professional in producing the PVC hose production line. We have stock in our factory, you can come to visit at any time.
It is suitable for producing all kinds of PVC soft pipes.The whole  PVC hose production line consists of the following six parts:

NO.
Name
Quantity
1
Single screw extruder with automatic feeding device
1set/2sets
2
Mold
1set
3
Stainless steel cooling tank
1set/2sets
4
Knitting Machine
1set
5
Haul-off machine
1set/2sets
6
Winding Machine
1set
PVC hose production line different models of production lines can produce PVC pipes with different diameter.
Extruder Modle
SJ45
SJ55
SJ65
Pipe Diameter(mm)
16~32
16~50
16~75
Production Capacity(kg/h)
40~60
50~70
60~100
Production Speed (m/min)
6
7
10
Total Power(kw/h)
30
45
60
Details Images

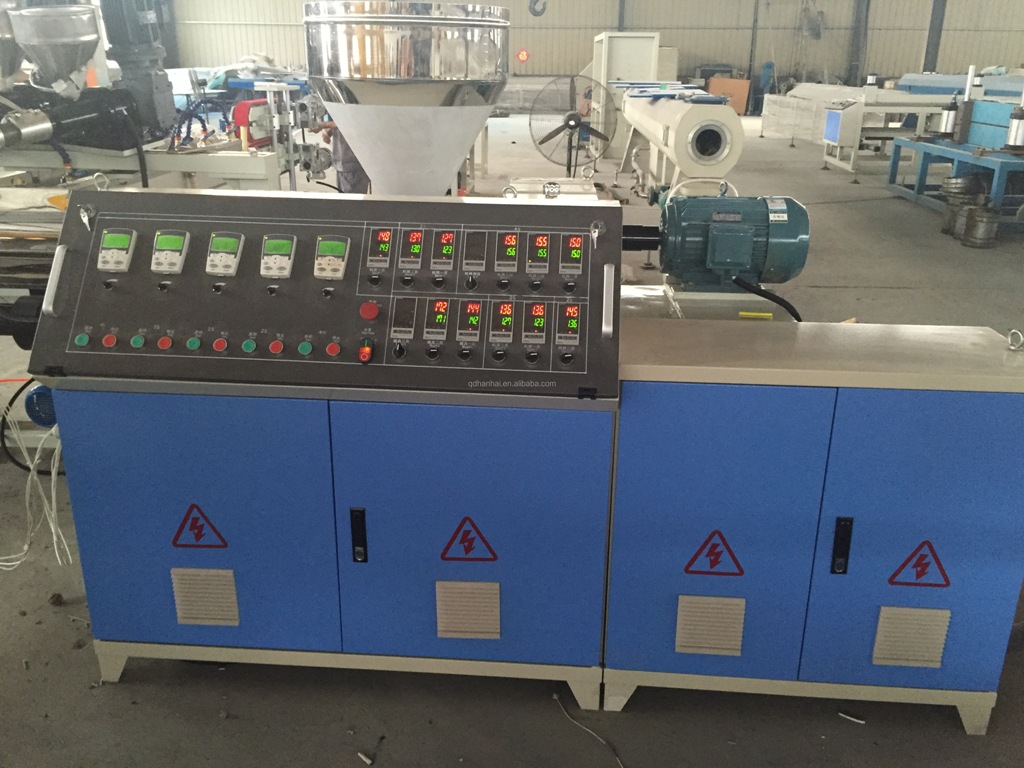

1. PVC hose production line Single screw extruder with automatic feeding device
According to the requirements of different diameters, different wall thicknesses and different output of pipes, we have many
models of special twin screw extruders to choose from. It adopts a specially designed screw structure, which can evenly heat,
plasticize PVC granules and extrude pipes .
(1) Motor brand: Siemens
(2) Inverter brand: ABB/Delta
(3) Contactor brand: Siemens
(4)Relay brand: Omron
(5) Breaker brand: Schneider
(6) Heating method: Ceramic or cast
aluminum heating

2. PVC hose production line Mould
The mould is made of high-quality alloy steel, the internal flow channel is chrome-plated and highly polished, which is wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed is hight and the surface of the pipe is good.
(1) Material: 40GR
(2) Size: Customizable

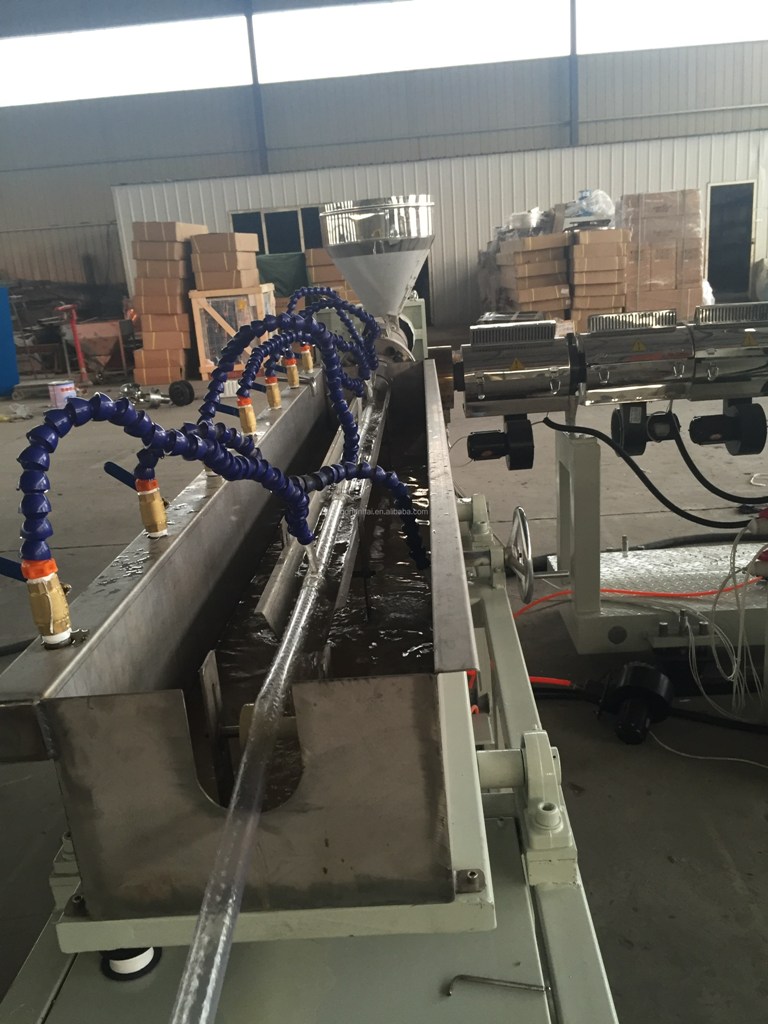

3. PVC hose production line Stainless steel cooling tank
It can calibrate and cool the PVC pipe from the mould.
(1) Length: 2000mm
(2) Material: stainless steel
(3) Calibrating method: inside pressure
(4) Up and down, front and behind maybe moved

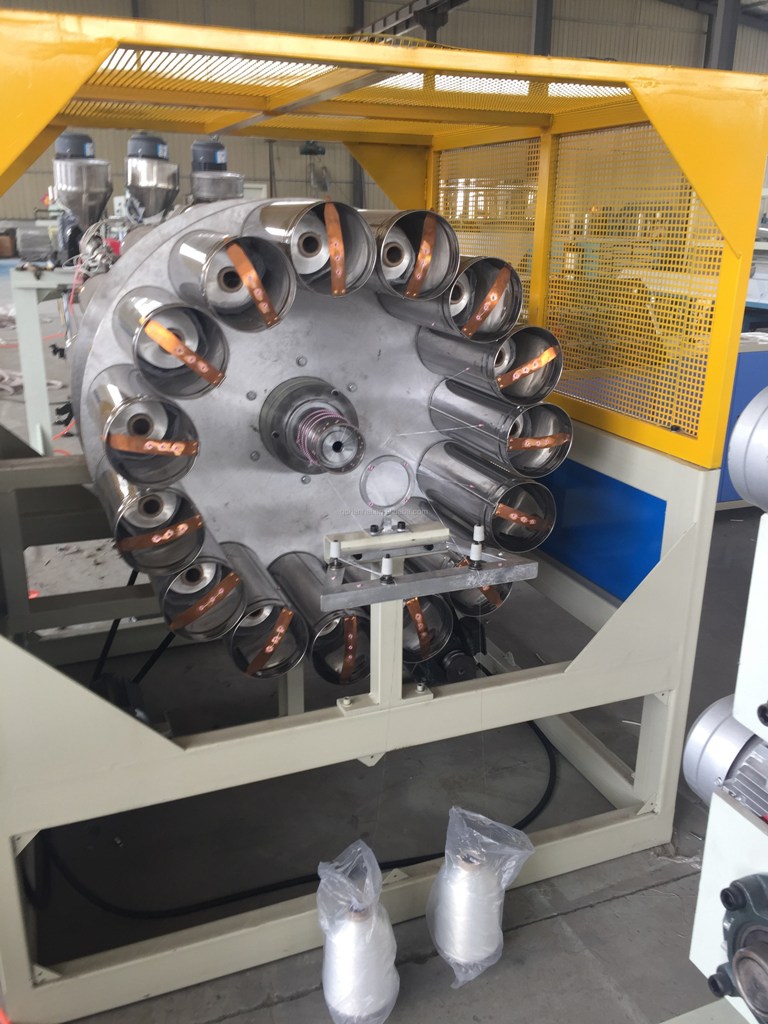

4. PVC hose production line Knitting Machine
It is used for knitting or braiding the fiber.
(1) Power: 3 kw
(2) 32 positions for fiber

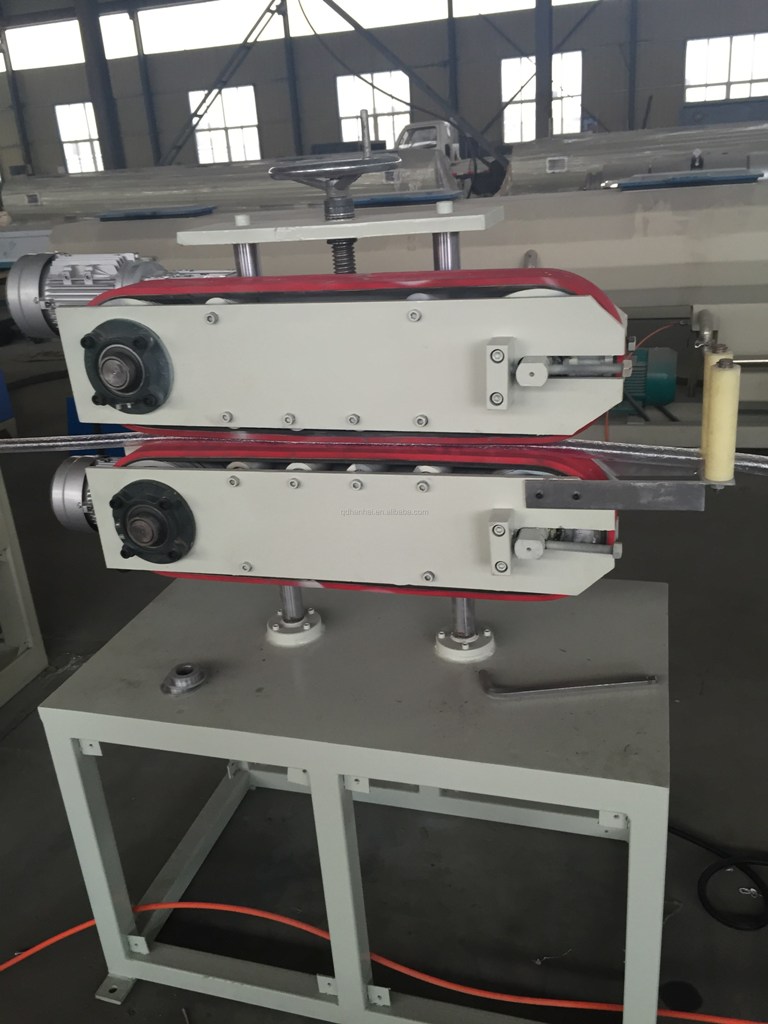

5. PVC hose production line Haul-off machine
It is used for haul-off the PVC hose.
(1) Motor power: 0.75 kw
(2) Valid length: 600mm
(3) Haul-off speed: 0-18m/min
(4) Using good quality flat adhesive backed tape

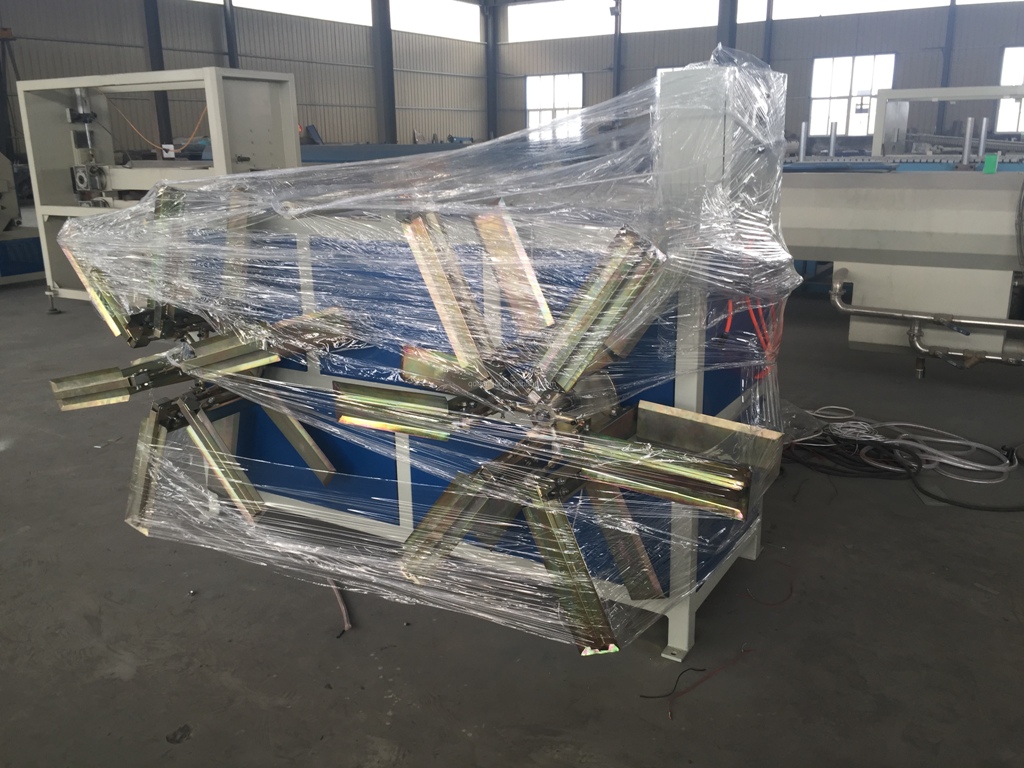

6. PVC hose production line Winding machine
It is used to wind up PVC hoses.
(1) Length of rolling pipe: 50-100feet
(2) Using power torque and auto winding
Final products
Our machine can produce all kinds of PVC hoses with fiber or without fiber, transparent or colorful hoses.

You just tell me what machine you want，let us do the rest work:

1. Design and manufacture suitble machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Field installation and commissioning;
(2) Field training your workers;(3) Field maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.
Reviews by customers
Certifications
Cooperation Brands
FAQ
1.Are you manufacturer or trading company?
We are manufacturer.

2.Why choose us?
We have 20 years experience for producing machine.We can arrange for you to visit our local customer's factory.

3.Delivery time: 30 days.

4.Payment terms:
30% of total amount should be paid by T/T as down payment, the balance (70% of total amount) should be paid before     delivery by T/T or irrevocable L/C（at sight).

5. Warranty: 1 year.
